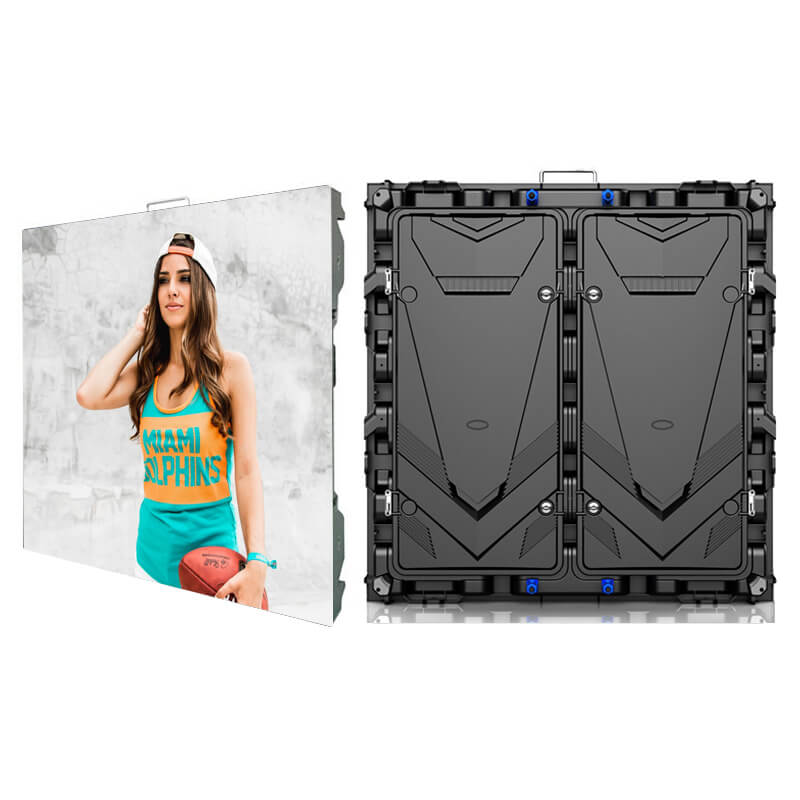

  • p3 outdoor screen cabinet
  • p6 module
  • p6 module

P3 Outdoor LED Display Screen

  • Model:P3-960X960
  • Outdoor LED Display
  • 3 Years Warranty
  • CE,RoHS,FCC Approved
  • Product Description: P3 Outdoor LED Video Wall, Waterproof P3 LED Display Screen
Inquiry Now

P3 Outdoor led video wall, Waterproof P3 Outdoor led display screen

  • SMD LED with Best Color Uniformity and High Brightness.
  • High Refresh Rate and High Grey Grade with Reliable Driving IC.
  • Best Power Supply of Meanwell PSU of CE, UL Approved.
  • Waterproof Outdoor IP65 LED Cabinet Can be Customized according to required LED Display Size.
outdoor led modules

To achieve the best visual performance of our indoor and outdoor led display, we use the best driving IC, such as MBI5124, SUM16136 with high refresh rate, high gray level with the latest technology.

led screen difference
p5 led screen cabinet

P3 LED Video Wall Specifications:

P3 outdoor led panel Parameter:
LED module dimensions192mm（W）*192mm（H）
Pixel pitch3mm
Pixel Density111111/ M2
Pixel configuration1R1G1B
LED specificationSMD1921 LED
Pixel resolution64（W）*64（H）
Average power35W
Panel weight0.35KG
Humidity10%-95%RH
Hub connectingHUB75
Best viewing angleHorizontal >170  Vertical>120
Best viewing distance5-30M
Working temperature-20-+60
Panel power supply5V40A
Screen power supply220VAC/50HZ+_10%
Max power<950W/M²/PANEL
Average power320W/M²/PANEL
Driving deviceMBI5124/16237Constant current driver
Drive type1/16Scanning
Refresh frequency960-1920HZ/S
Display color16.7M
Brightness5200-5800cd/M2
Life span100000Hours
Communication distance<100M
Warranty2 Years
CertificatesCE,RoHS,FCC
