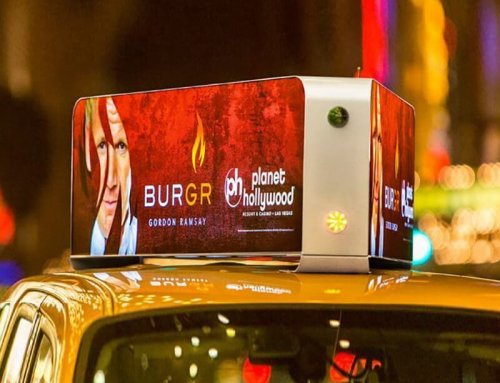

Taxi Top Led Display


  • Model: Taxi Top Screen
  • Outdoor LED Display
  • 2 Years Warranty
  • CE,RoHS,FCC Approved
  • Product Description: p3 taxi top led display, car roof top screen

High-Resolution Taxi Top Advertising Signs Features:

  • SMD LED with Best Color Uniformity and High Brightness.
  • 4 layers PCB and copper plating thickness > 18mil
  • Best LED chip from Taiwan Epistar and kinglight
  • Grand A raw material for module frame and mask
  • Multiple connection methods: 4G, wifi, USB and RJ45
  • Quick installation design for assembly and disassembly
  • Energy-saving design: driving with a low-frequency current, heat-dissipated roller fans
p5 taxi advertising signs

Taxi Roof Top Screen Details

8mm acrylic board
high brightness module
taxi screen installation steps

Taxi Screen Composition

taxi screen structure

Taxi Roof Top Screen Specifications:

Product name:P5P3P2.5
Pixel Pitch5mm3mm2.5 mm
LED TypeSMD 2727SMD2020SMD 2121
Pixel Density40000 dot/ m2111,111 dots160,000 dot/ m2
Module Size160*160mm192*96mm160*160mm
Screen Size960mm*320mm960*288mm960mm*320mm
Screen Resolution192*64 dot320*96 dot384*128 dot
Frame Size1100x 410 X164mm1100m x 390 X 1701100 x 410 X 164mm
Brightness6000 nit5000 nit5000 nit
Contrast8000:01:008000:01:008000:01:00
View Angle150°(H)/150°(V)150°(H)/150°(V)150°(H)/150°(V)
Scan Mode1/8 scan1/16 scan1/16 scan
Power Supply InputDC9–24VDC9–24VDC9–24V
Max Consumption450w450w480w
Average Consumption150w150w180w
Refresh Rate(Hz):Ordinary:.=85HzOrdinary:.=85HzOrdinary:.=85Hz
1920Hz1920Hz1920Hz
Viewing Distance3–50M3–50M1–20M
Life Span100,000 Hours100,000 Hours100,000 Hours
MTBF10,000 Hours10,000 Hours10,000 Hours
Control MethodAsynchronousAsynchronousAsynchronous
Control Mode3G/4G/WIFI/ USB3G/4G/WIFI/ USB3G/4G/WIFI/ USB
Temperature Operating.-40°~+75°.-40°~+75°.-40°~+75°
Working Humidity10%–90%RH10%–90%RH10%–90%RH
Protection Rating:IP65IP65IP65
Power Protectionover-temperature/currentover-temperature/currentover-temperature/current
over-voltage protectionover-voltage protectionover-voltage protection
Screen Weight23 kg22kg25kg
Package Dimension1100 X 500 X 2701100X 430 X 2101100 X 500 X 270
Gross Weight:27 kg26kg29 kg
CertificatesCE. ROHSCE. ROHSCE. ROHS

Operation Manual

taxi screen opertaion

The operation manual for different system card:

Sheen H series card manual

Sheen WIFI manual

Xixun Y10 card manual

For more detailed info, please check our car top sign videos on Youtube.
