Outdoor P4 SMD LED Display Screen

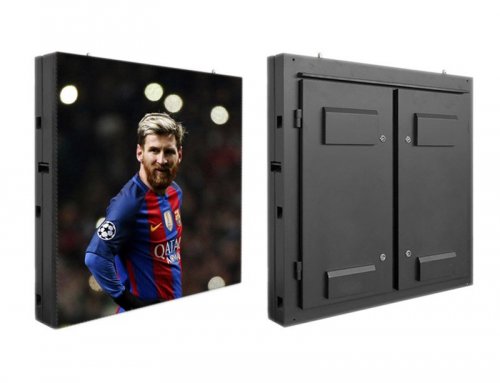

  • led cabinet
  • p4 led screen module
  • p4 outdoor screen module

Key points


  • Model: P4-1024X768
  • Outdoor LED Display
  • 3 Years Warranty
  • CE,RoHS,FCC Approved
  • Product Description: P4 Outdoor LED Video Wall, Waterproof P4 LED Display Screen

P4 Outdoor led video wall, Waterproof P4 Outdoor led display screen

  • SMD LED with Best Color Uniformity and High Brightness.
  • High Refresh Rate and High Grey Grade with Reliable Driving IC.
  • Best Power Supply of Meanwell PSU of CE, UL Approved.
  • Waterproof Outdoor IP65 LED Cabinet Can be Customized according to required LED Display Size.
outdoor led modules

To achieve the best visual performance of our indoor and outdoor led display, we use the best driving IC, such as MBI5124, SUM16136 with high refresh rate, high gray level with the latest technology.

led screen difference
p5 led screen cabinet

P4 LED Video Wall Specifications:

LED Module
Resolution64(H)×32(V)
Pitch4mm
Density62500 pixels/㎡
LED ArrangementSMD2727
Driver ModeDynamic 1/8 Duty constant current
Size256mm×128mm
MaskPure Black mask-high contrast screen
LED Cabinet
Cabinet Size768mm,1024mm,1280mm are Available
Cabinet MaterialSteel or Aluminum
WeightAbout 55 kg/m2
Electricity Parameter
Optical Ratings
Brightness≥6000cd/㎡
View Angle140 degree ( horizontal)  140degree(vertical)
View Distance4m-40m
Gray Scale8bits input, correction with 14bits
Display Color16.7M
Brightness Adjustment100 levels
Power Supply
Operation PowerAC100-240V 50-60HZ  Switch-able
Maxim Power Consumption1150 W/m2
Average Power Consumption650 W/m2
Control System
Correction Scale Level16bits
Frame Update Frequency60Hz
Screen Refresh Frequency480Hz
Gamma Correction-5.0—5.0
Support InputComposite Video, S-Video, DVI, HDMI., SDI, HD_SDI
Control DistanceEthernet cable 100m, optical fiber 5km
Support VGA Mode800×600,1024×768,1280×1024,1600×1200
Color Temperature5000-9300 adjustable
Brightness Correctiondot by dot, module by module, cabinet by cabinet
Reliability
Operating Temp.-20-60 Celsius degree
Operating Humidity10-95% RH
Operating Life100,000 hours
MTBF5000 hours
Continuous Working Time≥48 hours
Protection LevelIP65 Waterproof
Out of Control Pixel Rate0.01%
p4 outdoor screen
