Pantalla LED redonda
A round LED display (also known as a circular LED Display) refers to a display panel or screen that has a circular shape and utilizes light-emitting diodes (LEDs) as the primary method of generating light. LED displays are commonly used for various purposes such as digital signage, advertising, information display, and decorative lighting. A round LED display offers a unique visual aesthetic and can be found in applications like smartwatches, wearable devices, instrument clusters, and other specialized display needs where a circular shape is desired. These displays typically provide vibrant colors, high contrast, and good visibility from different viewing angles.
Circular LED Screen Features
- Circular Shape: Round LED displays are designed in a circular form factor, which allows them to fit seamlessly into devices or applications requiring a circular or curved display.
- Customization Options: Some round LED displays can be customized in terms of size, resolution, and color output to meet specific requirements.
- Easy operation: Round LED screen supports the 4g, WIFI, and USB control via the PC or phone.
- Flexible installation: our circle LED display supports the hanging and wall-mounted installation ways.
- Indoor and Outdoor use: we have p2, p3, and p4 pitches for indoor usage and p5, p6, p8 for outdoor usage. Meet customers’ different needs.
- High protection level: IP65 protection level and waterproof design are provided for outdoor using a round led screen.

circle led display operation
Round LED Screen Parameter
Modelo | P2.5 | P3 | P4 |
Paso de píxeles | 2,5 mm | 3 mm | 4 mm |
Tipo LED | SMD2121 | SMD2121 | SMD2121 |
Densidad de píxeles | 160.000 píxeles/㎡ | 111,111 Pixel/㎡ | 62.500 píxeles/㎡ |
Diámetro | 500mm | 1030mm | 512mm |
Peso del armario | 10kg | 30kg | 4.8kg |
Brillo | 800 nits | 1000 nits | 1000 nits |
Ángulo de visión | H: 160°; V: 160° | H: 160°; V: 160° | H: 160°; V: 160° |
Tensión de entrada | AC100-240V | AC100-240V | AC100-240V |
Max. Potencia | 800W/㎡ | 800W/㎡ | 550W/㎡ |
Ave. Energía | 280W/㎡ | 280W/㎡ | 200W/㎡ |
Temperatura de trabajo | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
Humedad de trabajo | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Medio ambiente | Interior | Interior | Interior |

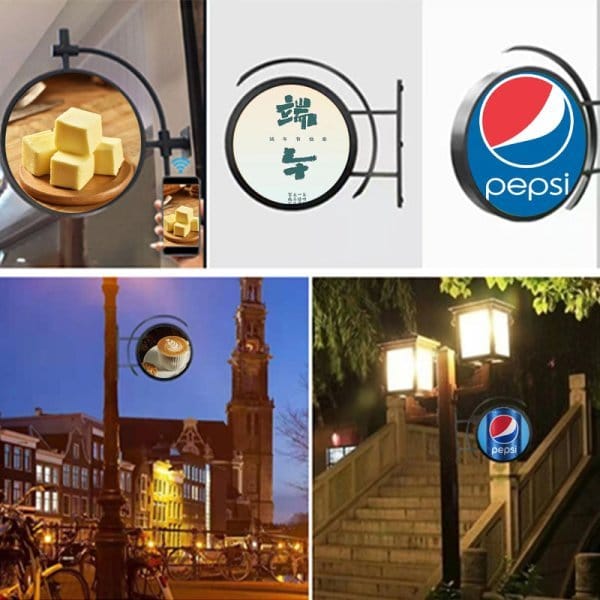

Circle Screen Application
Circle LED screens are suitable for various environments, for example, shopping malls, company logos or decorations, clubs, and events stages.
It has a wide viewing angle, allowing the content to be easily seen from various positions and angles without significant color or brightness distortion.
