Project Description
Led Digital Poster
LED Display Poster Player
- Model: LED Poster
- Indoor& Outdoor LED Display
- CE, Rohs Approved
- 3 Years Warranty
- Product Description: Lightweight High Brightness Digital Poster
LED Display Poster Features:
- Ultra-thin and light-weight body——thickness is 35 mm and weighing less than 40 kg, making installation easy and fast.
- Optional installation solutions——fold-out stand, Hanging, standby, and wall-mounting can be realized to meet different demands.
- HD visual experience——2.5 mm and 3 mm pixel pitch, high refresh rate (2000Hz) and brightness (1200 nits) provide users with the perfect display.
- High Brightness of outdoor 3.91mm,4.81mm with >6000 Nits, and Waterproof features for outdoor weather, stable and long lifetime.

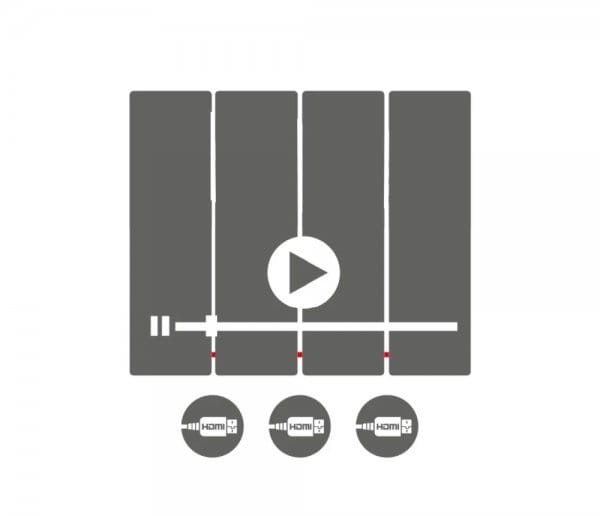

- Various work modes——besides single display work mode, multiple led display screen can be combined together creatively to bring a variety of display effect and improve the advertising efficiency.
- Elegant appearance——aluminum- alloy frame, fully enclosed frosted rear cover, acrylic glass surface, it is a mirror led display and customized border color present enchanting and eye-catching appearance.
- Multiple communication modes——communication via USB, WIFI, network cable, and HDMI increase service efficiency.
- Highly integrated hardware——integrated internal control system and power supply ensure the independent communication and management without other hardware, saving the CTU for the customer.
LED Poster Specifications:
| MODEL | Poster 1.9 | Poster 2.5 | Poster 2.5 | Poster 3 | |
| LAMP | LED Type | SMD(1010) | SMD(2020) | SMD(1515) | SMD(1515) |
| MODULE | Pixel pitch | 1.944mm | 2.5mm | 2.5mm | 3mm |
| LED module size(mm) | 210×280 | 280×210 | 320×160 | 192×192 | |
| Resolution(W× H) | 144× 108 | 112× 84 | 64× 128 | 64× 64 | |
| LED driving method | 1/27 scan | 1/28 scan | 1/24 scan | 1/30 scan | |
| CABINET | LED module layout | 2× 9 | 2× 12 | 2× 12 | 2× 12 |
| Display area | 1.06m² | 1.23m² | 1.23m² | 1.2m² | |
| Display Size(mm) | 560× 1890 | 640× 1920 | 640× 1920 | 576× 1920 | |
| Cabinet size(mm) | 572× 1902 × 35 | 720× 2000 | 720× 2000 | 656× 2000 | |
| Resolution(W× H) | 288× 972 | 224× 756 | 256× 768 | 192× 640 | |
| Net. weight/set | 32kg | 40kg | |||
| Ingress Protection | Front /Rear IP40 | ||||
| Power | AC 240/100±10% | ||||
| Serviceability | Front service | ||||
| DISPLAY | Max.Power consumption | 600W | 750W | 600W | |
| Avg.Power consumption | 200W | 250W | 200W | ||
| Viewing Angle(H/V) | 160°/160° | ||||
| Brightness | 1200~1500 cd/m² | 1000cd/m 2 | 1200~1500 cd/m² | ||
| Pixel density(pixel/m² ) | 169344 | 279936 | 160000 | 111111 | |
| Contrast ratio | 4000:01:00 | ||||
| Temperature/ Humidity | -10°C to 90% | ||||
| Lifetime(50% brightness) | 80,000hours | ||||
| Processing | 16bit | ||||
| Refresh rate | ≥2880Hz | ||||
| Frame rate | 60fps | ||||
| Brightness level | Manually/Auto | ||||
| Colors | 281trillion |
