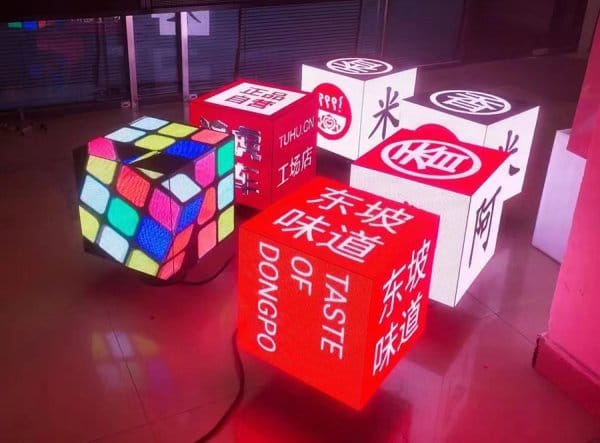

Cube LED Display
A cube LED display, also known as a LED cube or LED voxel display, is a three-dimensional arrangement of LED (Light-Emitting Diode) panels or modules that form a cube-shaped structure. Each side of the cube consists of an array of LEDs, which can be individually controlled to display various colors and patterns.
The cube LED display offers a unique visual experience by presenting content in three dimensions. By controlling the illumination of individual LEDs, the display can create dynamic animations, text, and graphics that appear to float or move within the cube.
Features
- Unique design: LED magic cube screen is a type of LED screen that can be in the shape of a cube with six square faces for excellent visual performance.
- Easy maintenance: Magnetic suction front maintenance, easily removed from the module surface to repair
- Size customization: It can be customized according to different size requirements and resolutions.

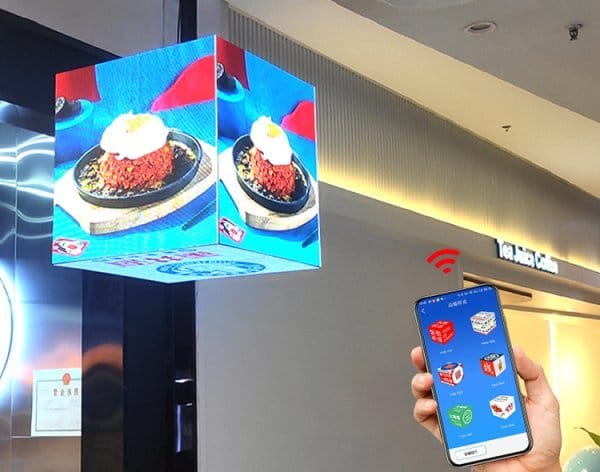

- Easy to control: It supports remote control via WIFI and 4G on the phone or PC. The USB device is also available.

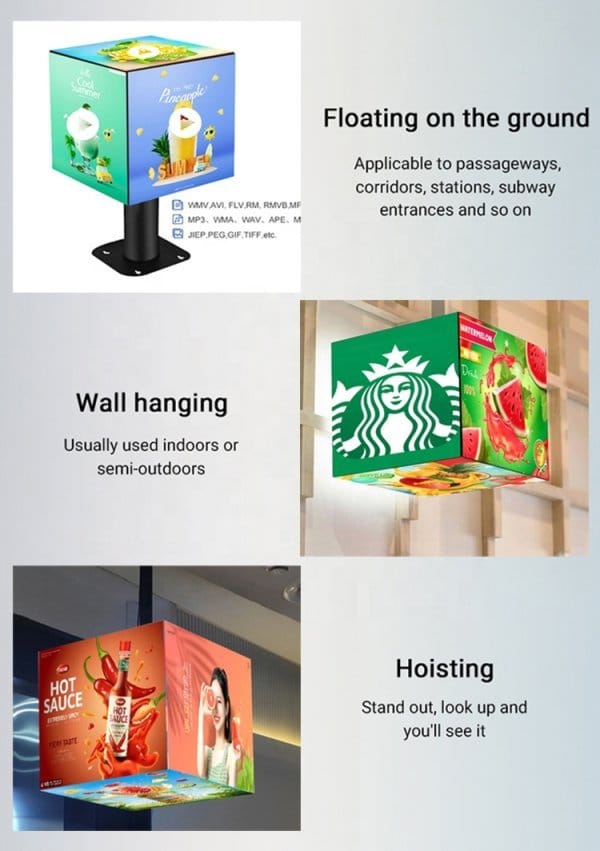

- Easy to install: The cube LED screen installation is available for standing, hanging, and wall-mounted.
Cube LED displays are often used in artistic installations, exhibitions, and visual presentations where a captivating and immersive visual effect is desired. They can also be found in the gaming, advertising, and entertainment industries, where they add an element of interactivity and engagement to the viewing experience.
Parameter
Model | P2.5 | P3 | P4 |
Pixel Pitch | 2.5mm | 3mm | 4mm |
LED Type | SMD2121/SMD1415 | SMD2121/SMD1921 | SMD2121/SMD1921 |
Pixel Density | 160,000 Pixels/㎡ | 111,111 Pixels/㎡ | 62,500 Pixels/㎡ |
Side Length | 320mm/480mm/640mm | 384mm/576mm/768mm | 320mm/640mm/800mm |
Cabinet Material | Iron | Iron | Iron |
Brightness | 800nits | 1000nits | 1000nits |
Viewing Angle | H: 160°; V: 160° | H: 160°; V: 160° | H: 160°; V: 160° |
Input Voltage | AC100-240V | AC100-240V | AC100-240V |
Max. Power | 550W/㎡ | 550W/㎡ | 550W/㎡ |
Ave. Power | 200W/㎡ | 200W/㎡ | 200W/㎡ |
Working Temperature | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
Working Humidity | 10%—90%RH | 10%—90%RH | 10%—90%RH |
Environment | Indoor/Outdoor | Indoor/Outdoor | Indoor/Outdoor |
