屋内固定 Led ディスプレイ
P5 960mmx960mm Standard Size LED Display
- Model: P5-960X960
- Indoor Fixed LED Display
- CE、Rohs承認
- 3年保証

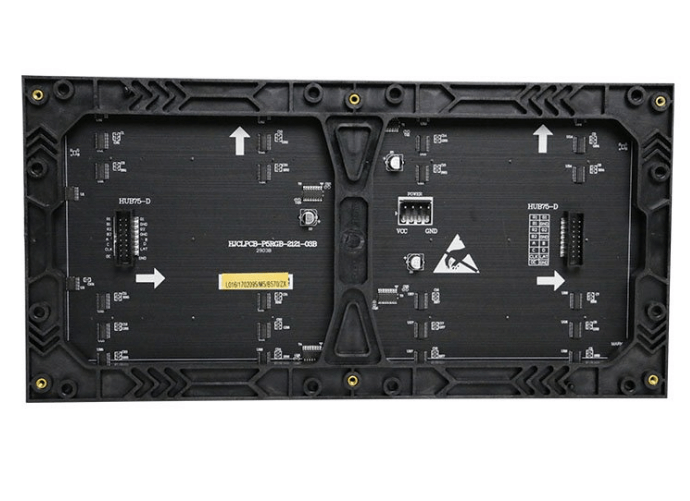

- Product Description: P5 960mmx960mm Standard Size LED Display, All with LED Module Size 320mmx160mm

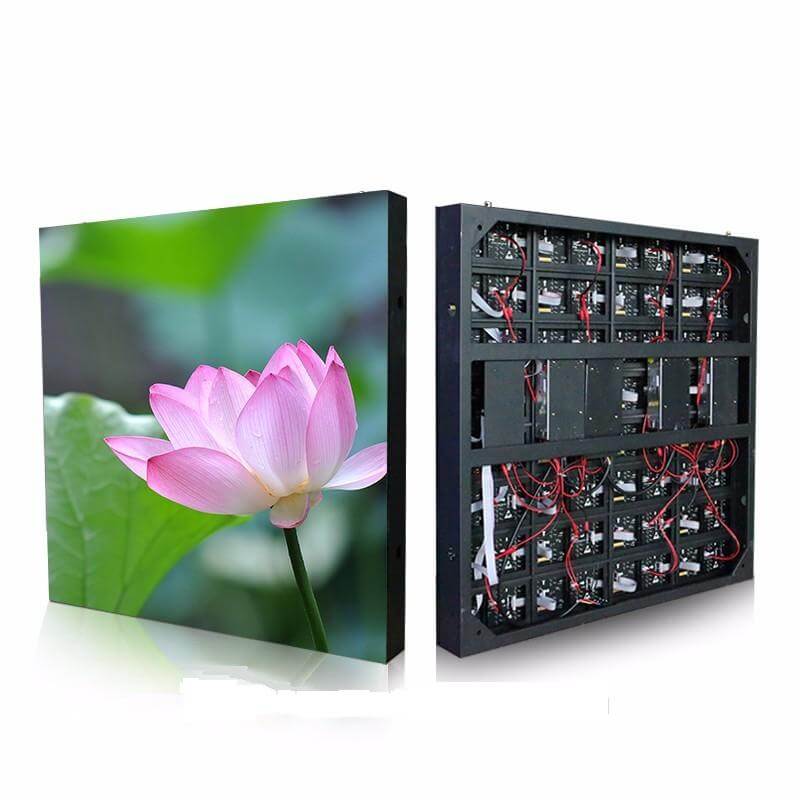

Indoor P5 led display screen, with Module Size 320mmx160mm and feather-light weight material cabinet
- Application for Shipping Mall; Station; Airport; Gymnasium;
- Classical design and natural tech., reliable quality and great performance.
- Seamless connecting tech., screen flatness error <0.1mm.
- Patented mask, eliminating the dark spots, improving consistency and viewing angle.
- High contrast, ideal grayscale, presenting the most realistic pictures.
- Supporting brightness and color correcting of the whole screen.
- Front Service
P5 LED Video Wall Specifications:
| モデル | LINSN-P5-IF-960X960 |
| LED | SMD 3in1 |
| Pixel | 5mm |

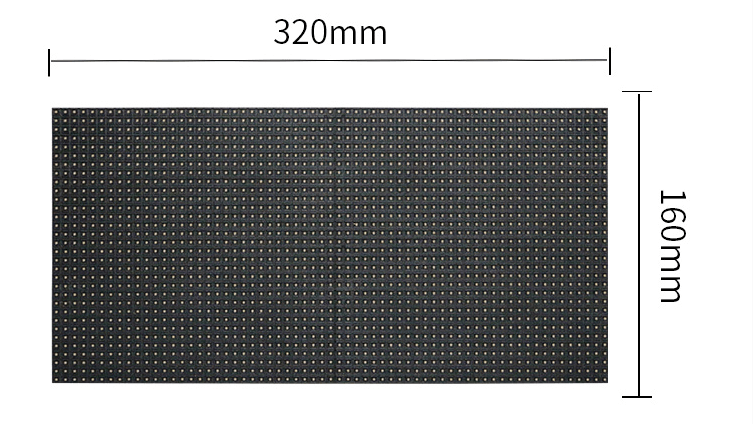

| Module size | 320*160mm |
| Module resolution | 64*32dots |
| 密度 | 50000 pixels/sqm |
| LED Cabinet Size | 960*960*85(mm) |
| Cabinet Weight | 25kg/pc |
| Material | Die Casting Magnesium Alloy |
| 明るさ | 800-1200 cd/m2 (Nits) |
| Average power consumption | 350w |
| Maximum power consumption | 750w |
| 最適な視聴距離 | 5m to 50m |
| Grey Level | 14 bits |
| Fresh frequency | 480-960HZ |
| Humidity-operating | 10% ~ 95% |
| Temperature-operating | -20℃~+50℃ |
| Screen life | ≥100000 hours |
| Controlling mode | Synchronization or Asynchronous |
| Controlling system | Novastar/Linsn/Huidu |
| Protective grade | IP54 |
| Certificates | CE,RoHs,FCC,UL |
| Warranty | 3 Years |
